Synchronization device X-Log SynX Pro

The user-friendly and at the same time very precise electronic vacuum gauge SynX "Profi Line" is intended for professionals. Once installed, no further adjustment is necessary. The device calibrates automatically in a few seconds thanks to the AutoRange & AutoZoom functions. The values ​​are easy to read on the digital display, allowing the optimum synchronisation to be adjusted in record time.

Features:

• Automatic calibration
• Measurement functions:
• Automatic mode: AutoRange + AutoZoom
• Differential pressure: 400/200/100/50/25 mbar between the channels
• Pressure variations: display of min. and max. values
• Pressure curve
• Engine speed: 500 to 2500 rpm
• Measurement resolution: digital 1 mbar, graphic 0.25 mbar
• Highly sensitive recording element
• Works on batteries (3 x AAA) or rechargeable battery (charging via USB with supplied power supply unit)
• Checking the voltage when operating on battery
• Backlit screen
• Ergonomic housing with anti-shock protection
• Warranty 5 years (after registration with the manufacturer)
• Dimensions: 16.5 x 8.5cm

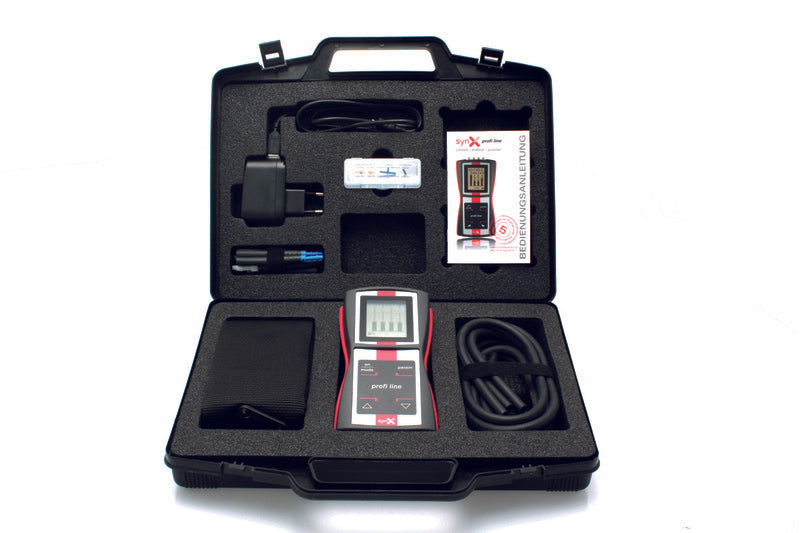

Contents of the case:

• 4 adapters with M5 thread
• 4 adapters with M6 thread
• 4 plastic adapters with hose Ø internal. 4mm length 8cm
• 4 plastic adapters with hose Ø int. 5mm length 8cm
• 4 vacuum hoses, length 75cm
• 1 T-connection with outputs 4 / 4 / 4mm
• 1 T-connection with outputs 5 / 5 / 4mm
• USB cable and power supply
• Instructions for use
• Belt/universal mounting bracket
• Suitcase
