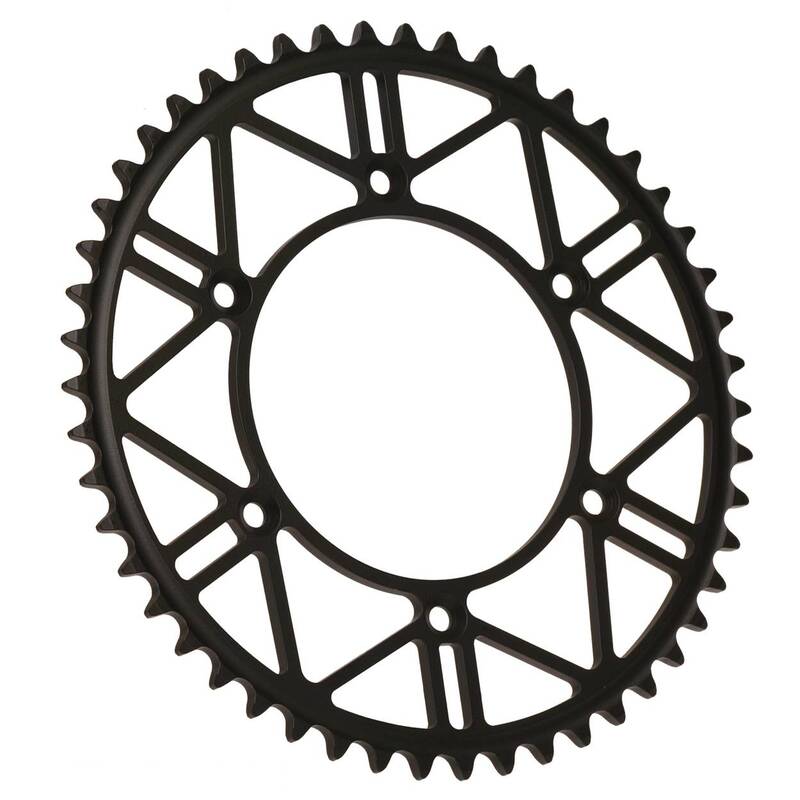

RFX Pro Series HCS Steel Rear Sprocket - 520

RFX Pro Series Hi-Carbon Steel (HCS) sprockets are perfect for the rider looking for longevity and value for money from their sprockets while offering genuine quality not found elsewhere.

Certified Hi-Carbon Steel offers unbeatable wear properties and its added strength over mild steel allows for a lighter profile design, this means the weight increase over aluminum is kept to a minimum.

RFX HCS sprockets are precision Laser cut for more precision and tighter tolerances.

Pro Series HCS Sprocket Features

• Certified Hi-Carbon Steel
• CNC Laser Cut.
• CAD designed profile for lightness.
• Mud clearing grooves to reduce wear.
• Rigid design increases torsional strength.
• Tighter tolerances improve performance.

Fitting Instructions:

• Start with bike on a stand with the rear wheel raised from the ground.
• Remove chain and wheel from bike.
• While holding the Hex key loosen the nuts with a spanner.
• Remove all nuts and old sprocket.
• Clean around the hub making sure clean and free of debris.
• Take the new sprocket and place on hub ensuring a nice snug fit making sure the bolt holes are in position.
• Clean sprocket bolts & nuts.
• Apply Blue Loctite to each bolt and insert in the holes.
• Thread nuts on to bolts by hand ensuring locking seals are intact and in good condition.
• Hold Hex key in place and tighten nuts even pattern.
• Torque nuts and bolts in accordance with your owner's manual.
• Put wheel back in bike making sure chain is correctly aligned and tightened to manufacturer's specification.
