BIKE LIFT Absolute 756 Split Elektrohydraulische inbouw-motorlift AS756-003/F – Zwart

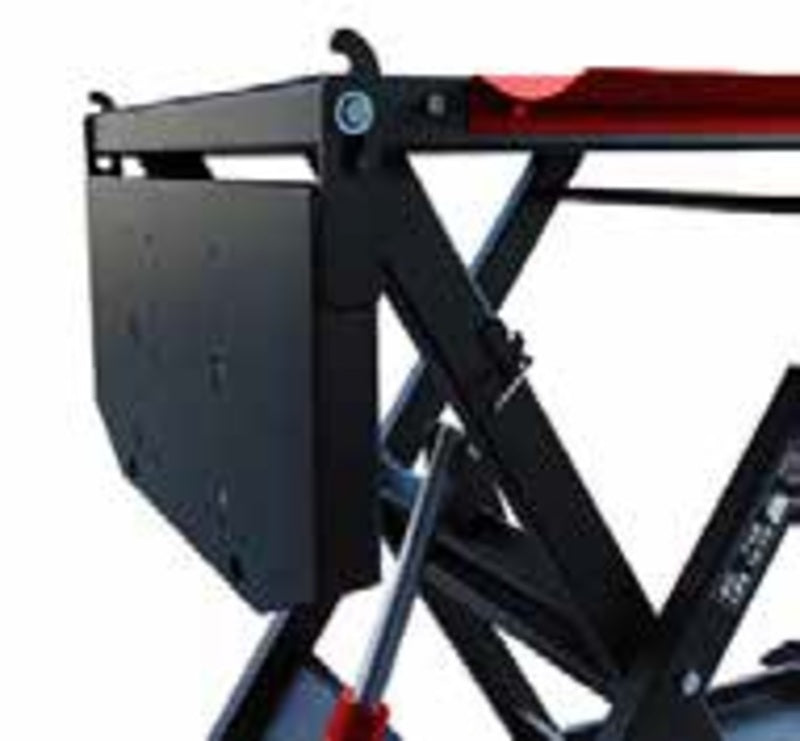

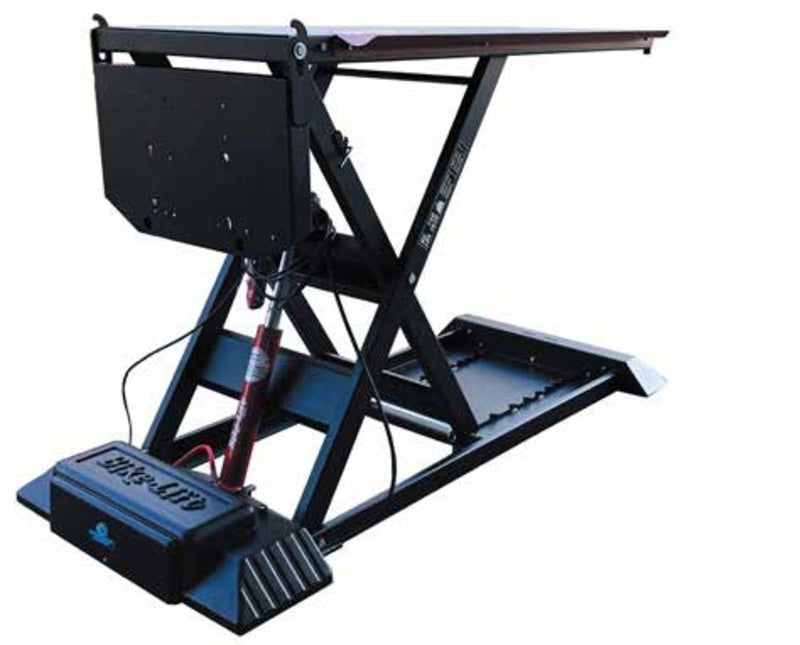

The ABSOLUTE 756 Split lift table is designed to handle the heaviest motorcycles. Capable of lifting up to 750 kg to a height of 1.30 m, it features a sliding rear panel and a removable front section, allowing easy access to the wheel for quick and simple maintenance operations. Its extremely robust and stable structure ensures excellent working comfort in total safety.

Technical specifications

• Max load capacity: 750 kg
• Max lifting height: 130 cm
• Min height: 20 cm
• Safety positions: 8

Dimensions

• Tabletop size: 220 × 75 cm
• Run‑up ramp size: 82 × 51 cm
• Overall dimensions (complete lift): 230 × 99 cm
• Tabletop overall dimensions: 220 × 92 cm
• Side wings dimensions: 161 × 8.5 cm
• Sliding rear panel dimensions: 60 × 36 cm
• Removable front section (Split) dimensions: 75 × 44.5 cm

Lifting system

• Pump type: Electro‑hydraulic
• Motor power: 1.1 kW
• Power supply: 230 V – 50 Hz (Europe)

Weight

• Total weight: 265 kg

Standard equipment

• Run‑up ramp: 1 pc
• Wheel stop: 1 pc
• PZA protection plate: 1 pc
• Side wings: 2 pcs
